The TRX420FM2 is one of New Zealand’s favourite ATVs for a reason. It has all the great features of the FM1 model with the addition of power steering. The Electronic Power Steering (EPS) system uses the latest technology, incorporating Electronic Computer Unit (ECU) mapping for improved linearity in steering response and reduced low-speed steering effort for enhanced manoeuvrability. The increased kickback resistance provides better all-around steering action and control over rough terrain.

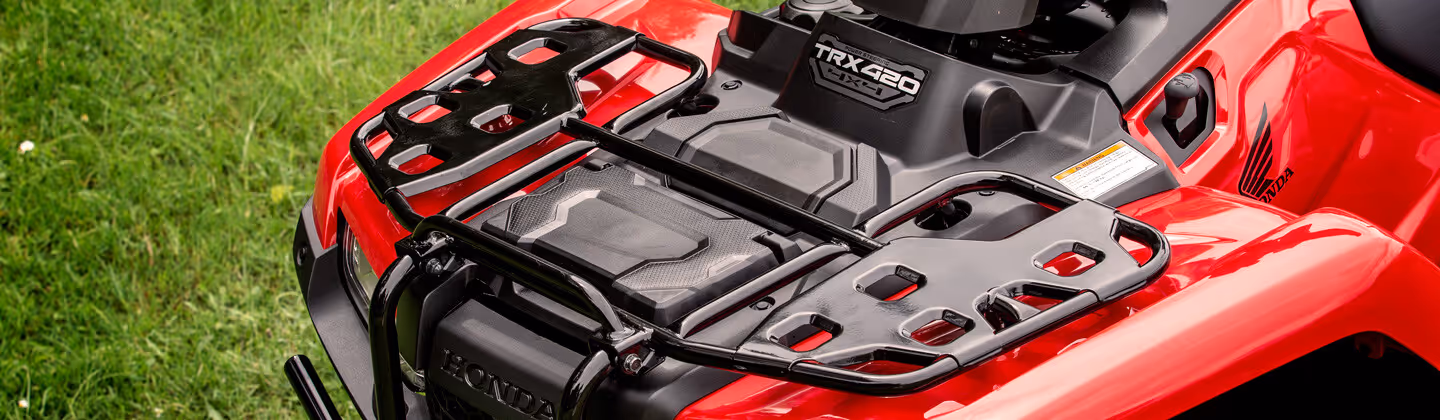

Elsewhere, the stiffness of the double-cradle steel frame allows for precise handling and 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride. The storage compartment on the front of the bike and carry racks which provide more loading options. New guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints. This is one tough, economical and capable ATV.


Engine Type - Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke

Displacement (CC) - 420cc

Bore and Stroke - 86.5mm x 71.5mm

Ignition - Full-transistorised with electronic advance

Fuel System - Programmed Fuel Injection (PGM-FI)

Starter - Electric with auxiliary recoil standard

Final Drive - Direct front and rear driveshafts with torque sensing front differential

Transmission - Manual 5-speed with reverse

Suspension Front - Independent double-wishbone; 170mm travel

Suspension Rear - Swing arm with single shock; 170mm travel

Kerb Weight - 286kg

Fuel Capacity - 14.7litres including 4.9litres reserve

Dimensions - 2,104mm(L) x 1,205mm(W) x 1,174mm(H)

Carrier Capacity - 30kg Front rack - 60kg Rear rack

Towing Capacity - 385kg
