One of Honda’s most loved ATVs, the TRX420FM1 sets the benchmark for rugged durability.  With a reliable and economical 420cc engine this 4WD manual makes easy work of hilly terrain. Throttle response and economy are helped by the latest version of Honda’s Programmed Fuel Injection (PGM-FI) system.

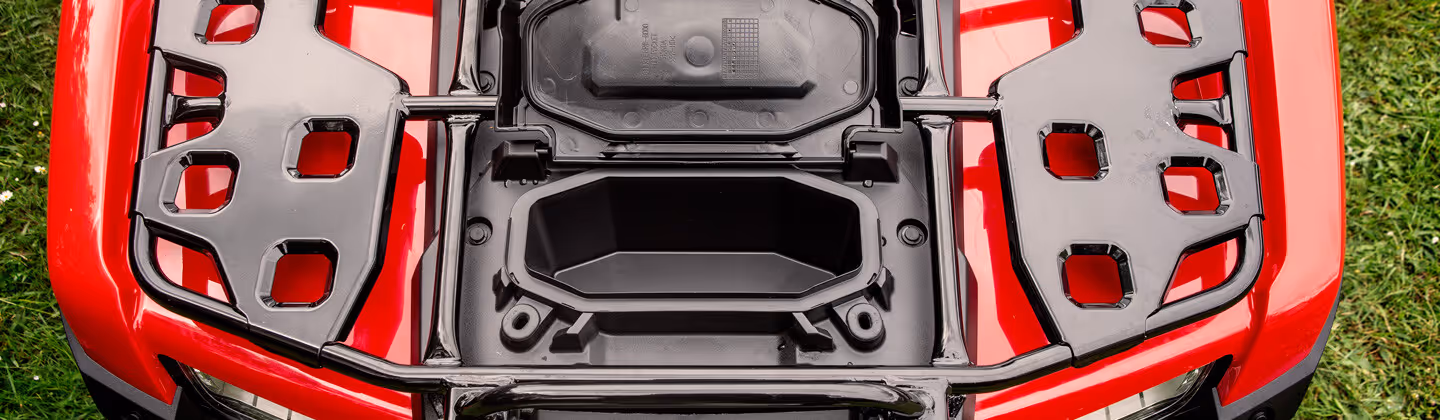

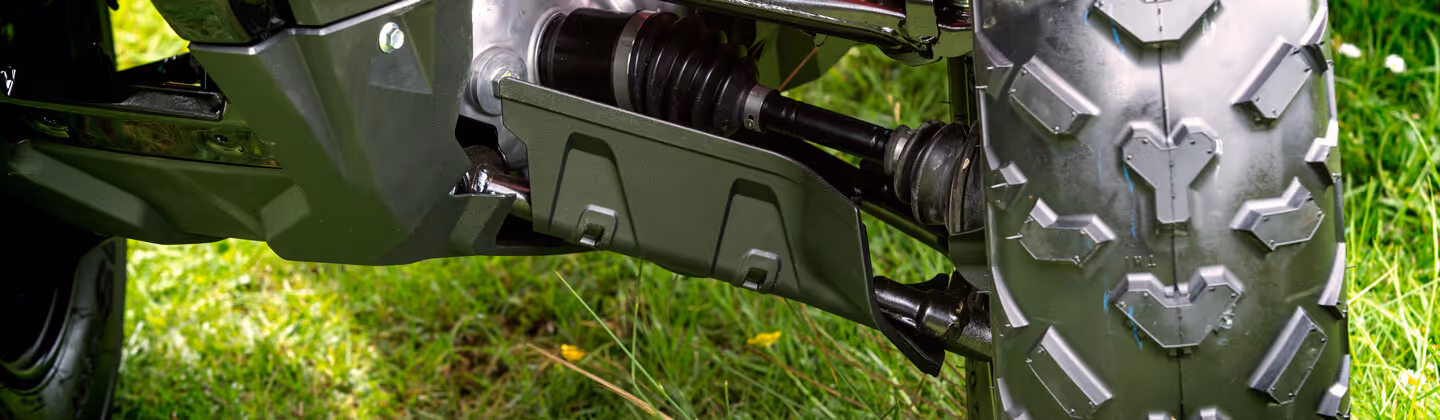

The TRX420FM1 has revised carry racks, and a built in front storage component which is perfect for storing keys, a phone, or similar you need to keep safe. It’s equipped with a double-cradle steel frame designed for precise handling and a smooth ride without compromising strength, 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride, and new guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints which helps protect the running gear of the bike and further improves the durability of this model!


Engine Type - Liquid cooled OHV longitudinally mounted single cylinder, 4 stroke

Displacement (CC) - 420cc

Bore and Stroke - 86.5mm x 71.5mm

Ignition - Full transistorised with electronic advance

Fuel System - Programmed Fuel Injection(PGM-FI) - 34mm throttle body

Starter - Electric with auxiliary recoil standard

Final Drive - Direct front and rear driveshafts with torque sensing front differential

Transmission - Manual 5-speed with reverse

Kerb Weight - 280kg

Fuel Capacity - 14.7litres including 4.9litres reserve

Suspension Front - Independent double wishbone; 170mm travel

Suspension Rear - Swing arm with single shock; 170mm travel

Dimensions - 2,104mm(L) x 1,205mm(W) x 1,174mm(H)

Carrier Capacity - 30kg Front rack - 60kg Rear rack

Towing Capacity - 385kg
