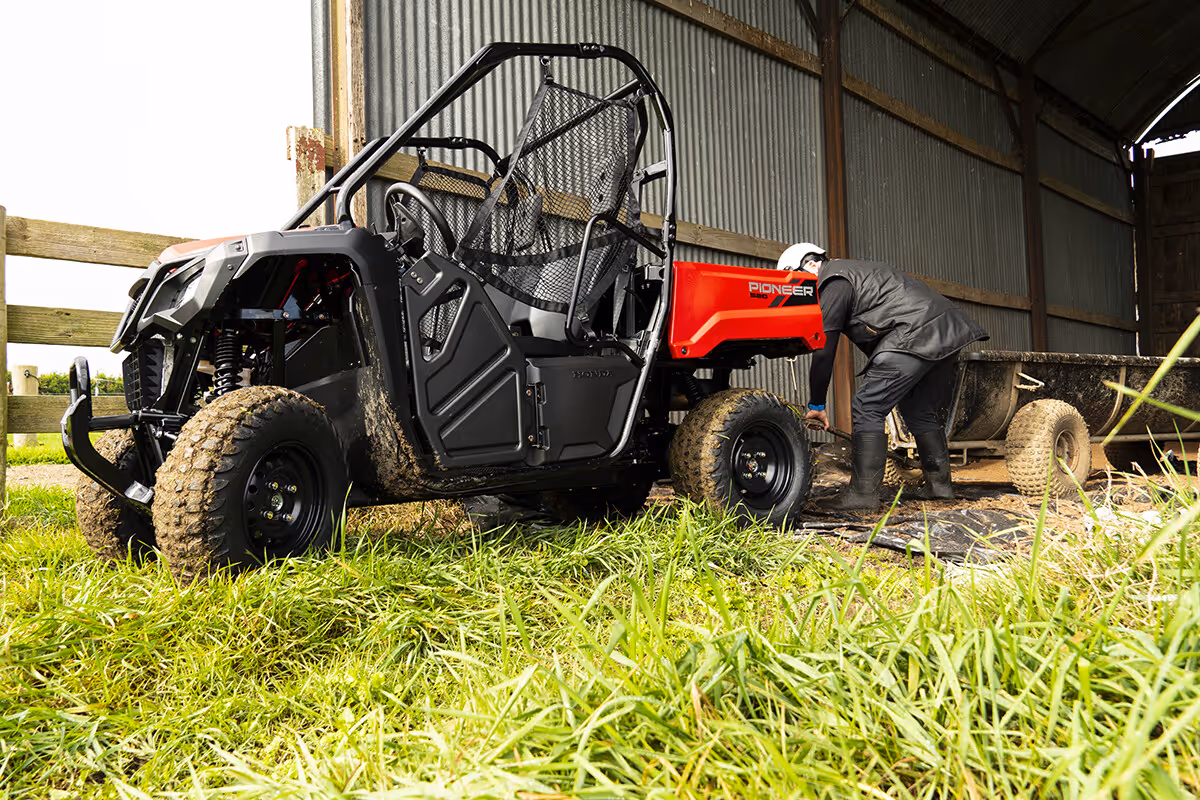

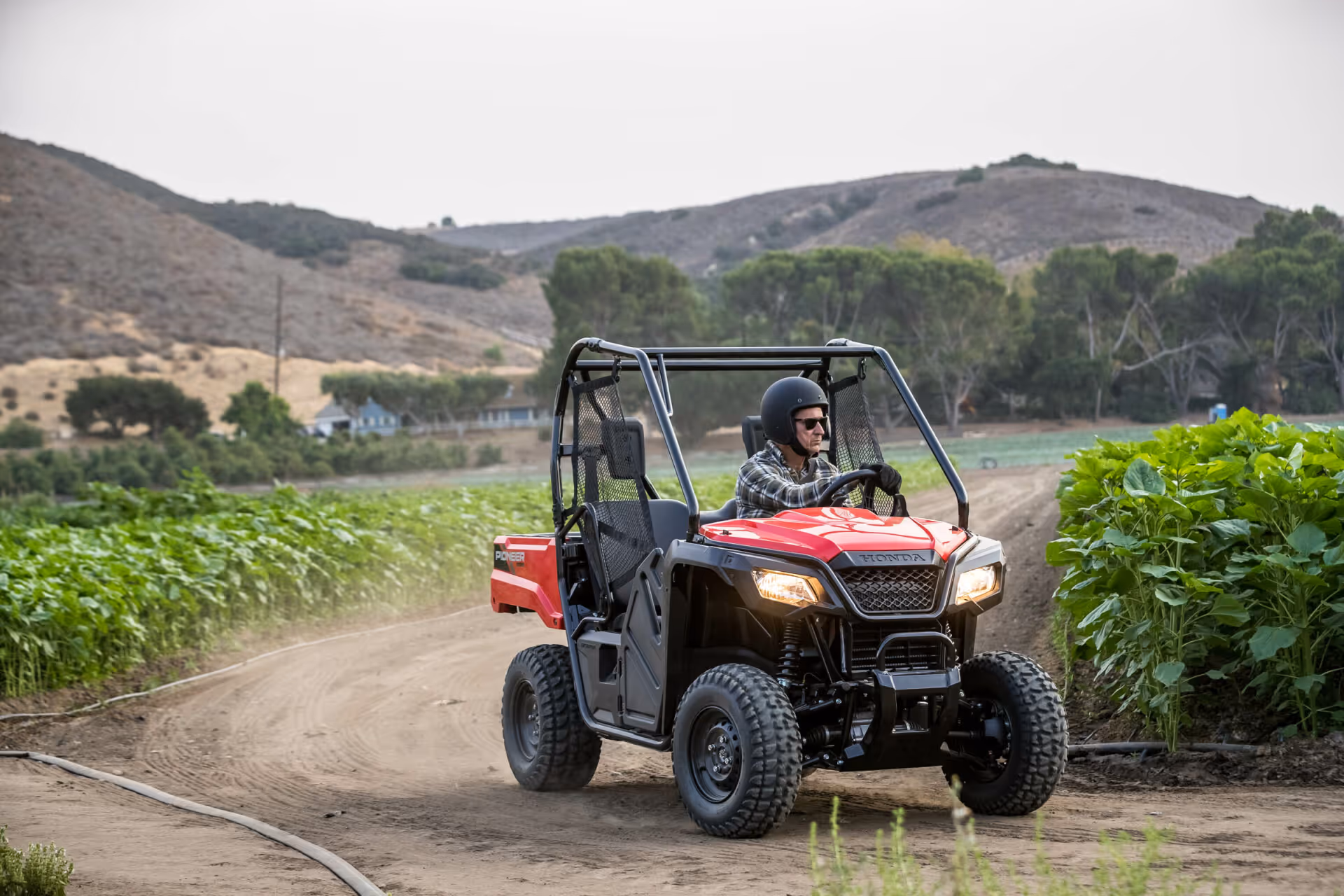

The Pioneer 520’s, powerful 518cc engine with fuel injection for great cold weather and high altitude performance. The strut-assist tilt utility bed makes dumping cargo a breeze.
You also get features like our Honda automatic transmission using rugged, steel gears with AT/MT modes. Selectable Traxlok® two- or four-wheel drive for lighter steering or for more traction and the longitudinally mounted engine to put more grunt to the ground.

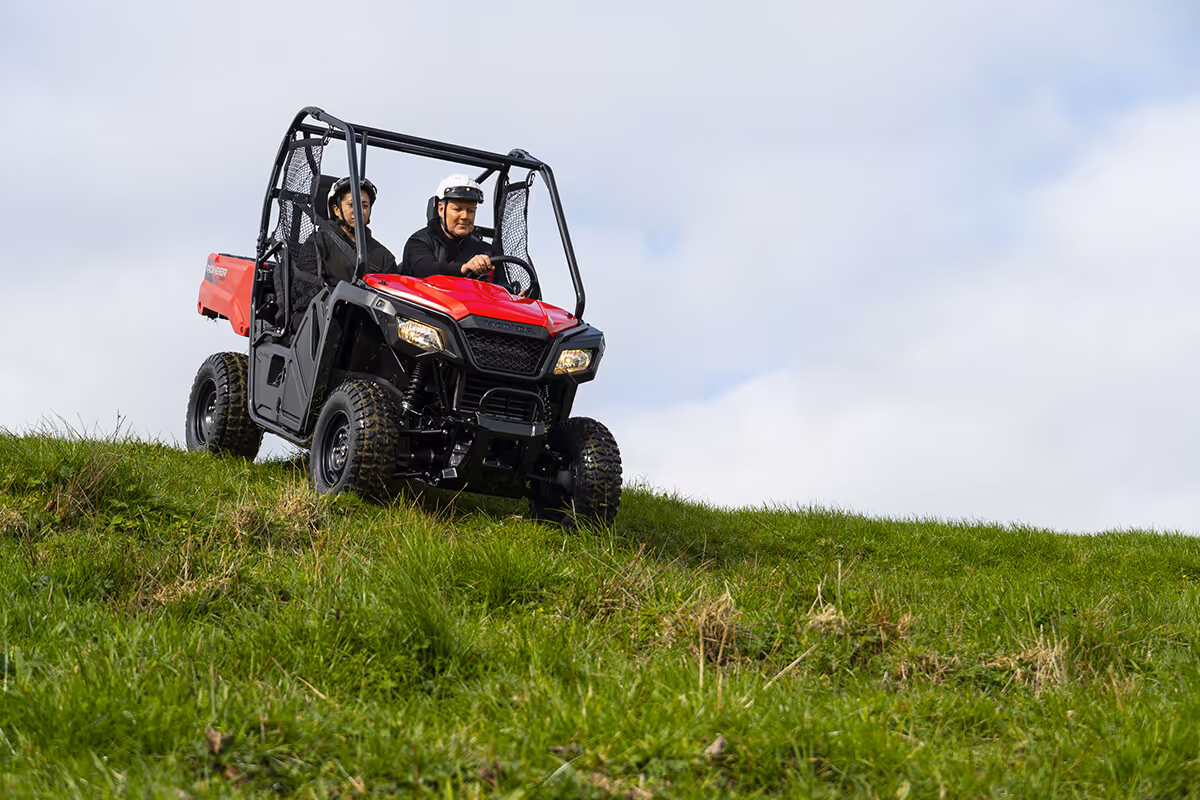

The narrow width lets you and a passenger go where other side-by-sides can’t, on width-restricted trails and farm tracks. It also allows easy transport and storage.
The Pioneer 520 is your go-to side-by-side that punches well above its size and weight on the farm.
Engine Type - Liquid cooled single cylinder four-stroke
Displacement (CC) - 518cc
Bore and Stroke - 96.0mm x 71.5mm
Ignition - Full-transistorized type with electronic advance
Fuel System - Electronic fuel injection (PGM-FI), 36mm throttle body
Starter - Electronic
Gearbox - Five-speed automatic transmission with AT/MT modes with paddle shifting and reverse. Two drive modes include 2WD and 4WD
Final Drive - Direct front and rear driveshafts
Transmission - Five-speed automatic
Suspension Front - Independent double-wishbone; 147mm of travel
Suspension Rear - Independent double-wishbone with preload adjustablility; 150mm of travel
Wheelbase - 1854mm
Kerb Weight - 483kg
Fuel Capacity - 15.5 Litres
Dimensions - 2667mm (L) x 1270mm (W) x 1808mm (H)
Carrier Capacity - 204kg
Towing Capacity - 453kg
